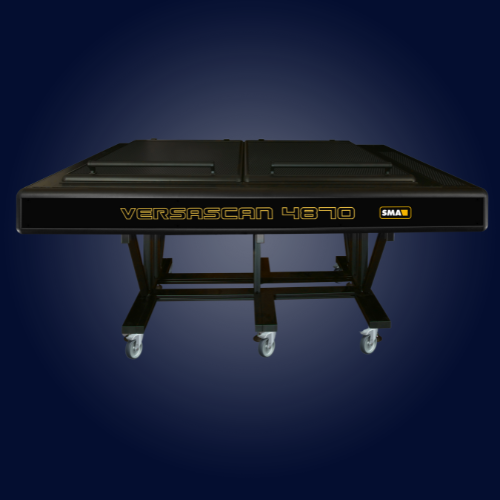

VERSASCAN 4870
The VERSASCAN 4870 is a high-performance double A0 flatbed scanner designed for digitizing extra-wide originals with exceptional clarity and speed. Trusted by leading archives, libraries, and industries worldwide, it features advanced V3D (Visual 3D) technology that captures textured and reflective surfaces, such as wood, fabric, metal, and more, with striking detail. Easy to operate like a photocopier and available with a roll-away mount or motorized height adjustment, the VERSASCAN 4870 delivers unmatched versatility for scanning large, delicate, or complex materials with precision and ease.
Why Choose The VERSASCAN 4870 Flatbed Scanner?
Easy-to-use
- Optional ergonomic motorized height adjustment allows operators to set the ideal working height for maximum comfort.
- Hands-free foot pedal control frees both hands to hold, position, or flatten originals without touching the scanner.
- Provides intuitive operation with a simple, photocopier-style controls make scanning fast and straightforward for all users.
Superior Image Quality
- True 600dpi resolution delivers sharp detail and precise color reproduction across the entire scan area.
- V3D Technology enhances depth of field for flawless reproduction of textured and structured surfaces.
- Specialized LED lighting ensures consistent results while protecting documents from harmful UV and IR exposure.
Maximum Productivity
- With fast setup and immediate operation minimize downtime between jobs means instant start scanning.
- Single-Pass Large-Format Capture digitizes oversized documents without stitching or multiple scans, saving valuable processing time.
- Flatbed design safely scans fragile materials without extra preparation or feed mechanisms, streamlining the process.
VersaScan = Versatile Scanning, Anywhere
Multi-Purpose Scanning Functionality
Geometrical Accuracy
Provides exceptional geometric precision, making it ideal for highly detailed applications such as GIS, cartography, and land surveying.
Structured & Textured Materials
Powered by V3D (Virtual 3D) technology, it captures the fine details of textured and reflective surfaces, such as wood, fabric, coins, and seals, with unmatched clarity, expanding its capabilities far beyond standard document scanning.
Adaptive Media Handling

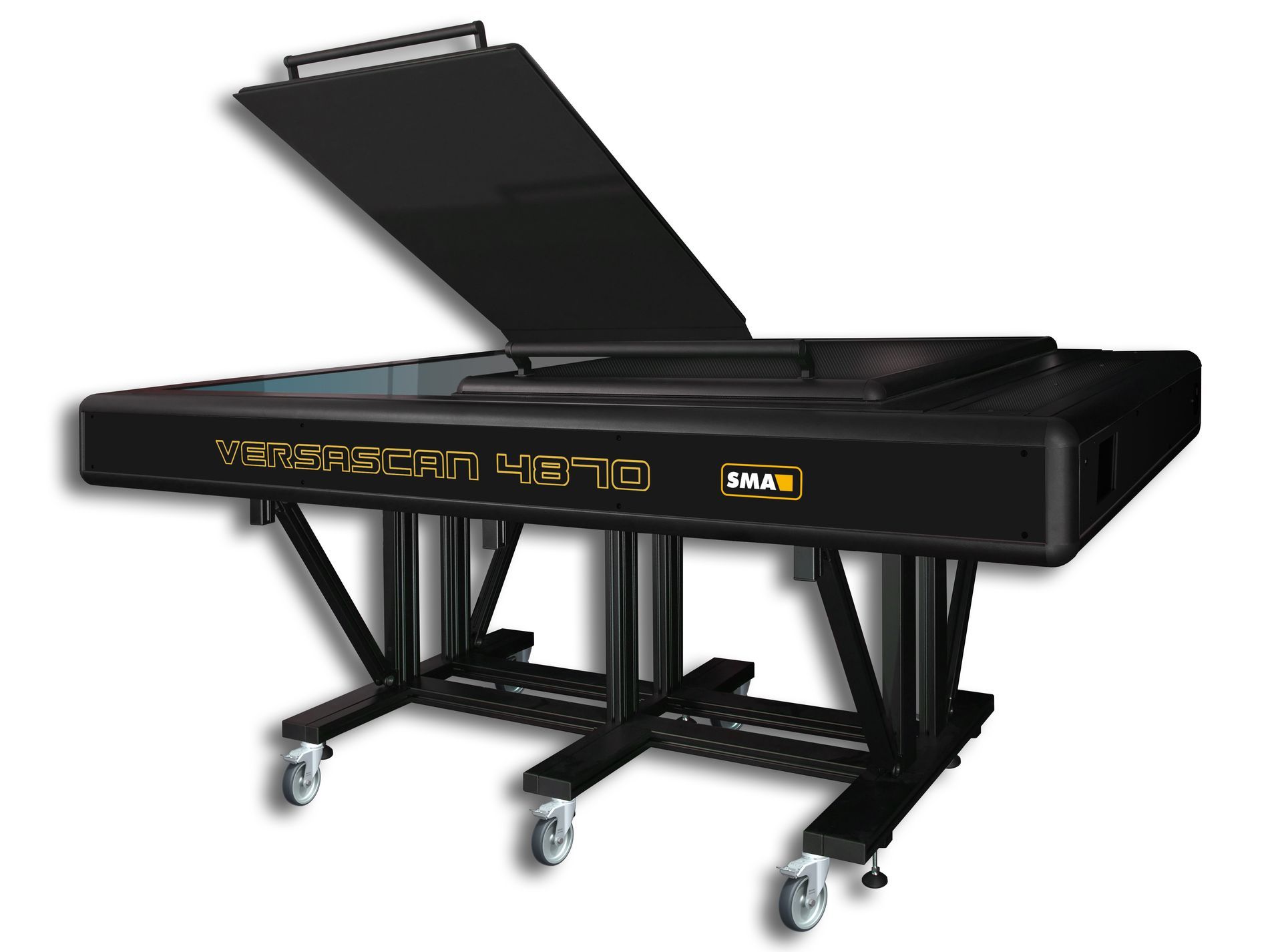

Effortlessly accommodates a wide variety of media types and thicknesses, from rigid architectural plans to delicate historical artifacts.
Fragile Document Protection
The flatbed design and gentle scanning process safeguard sensitive originals, ensuring safe digitization without the risk of damage.
Large-Format Capability
Handles oversized materials, including maps, blueprints, newspapers, and other originals up to 25″ × 50″ that are unsuitable for sheet-fed systems.
Portable. Adaptable. Ready.

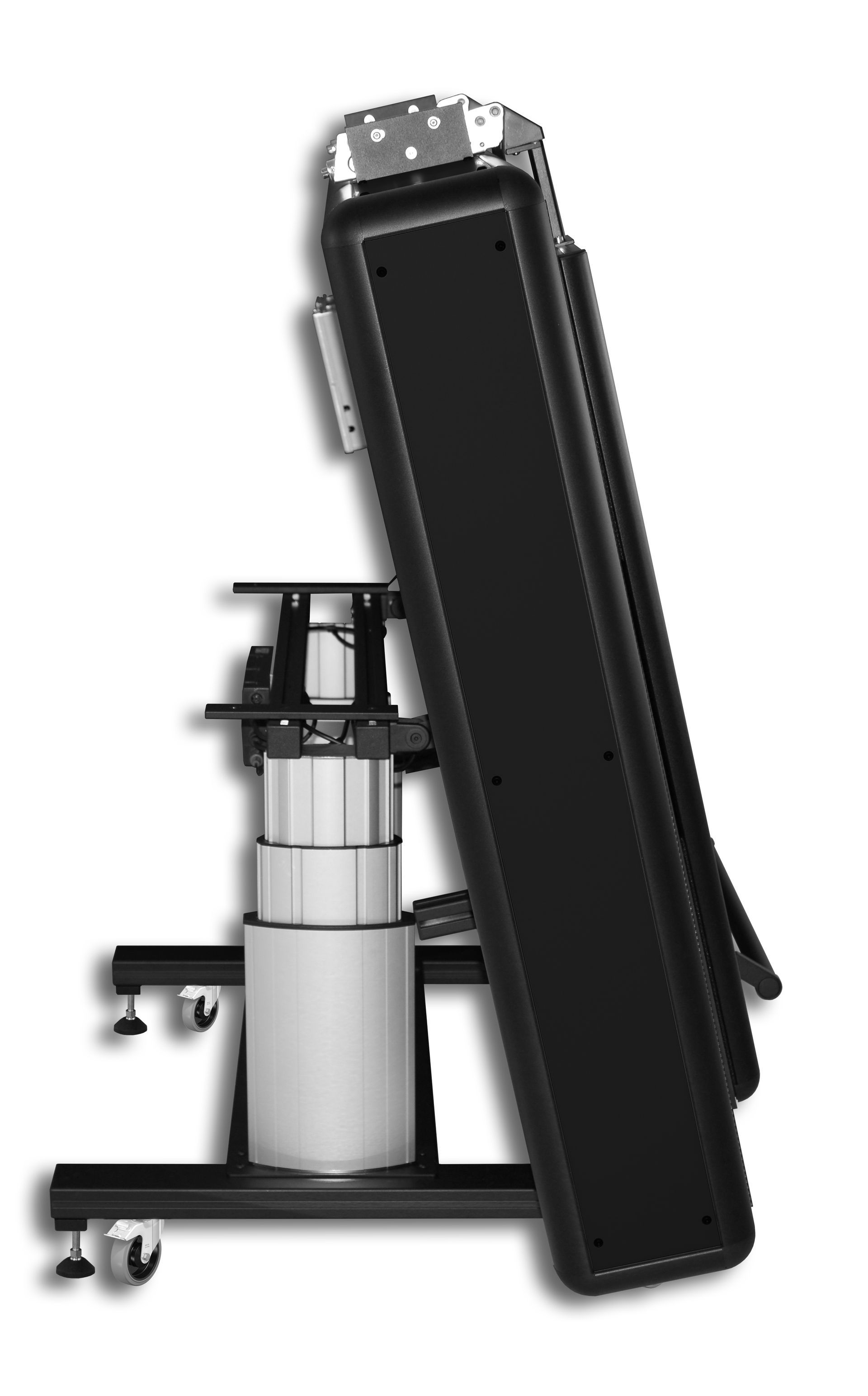

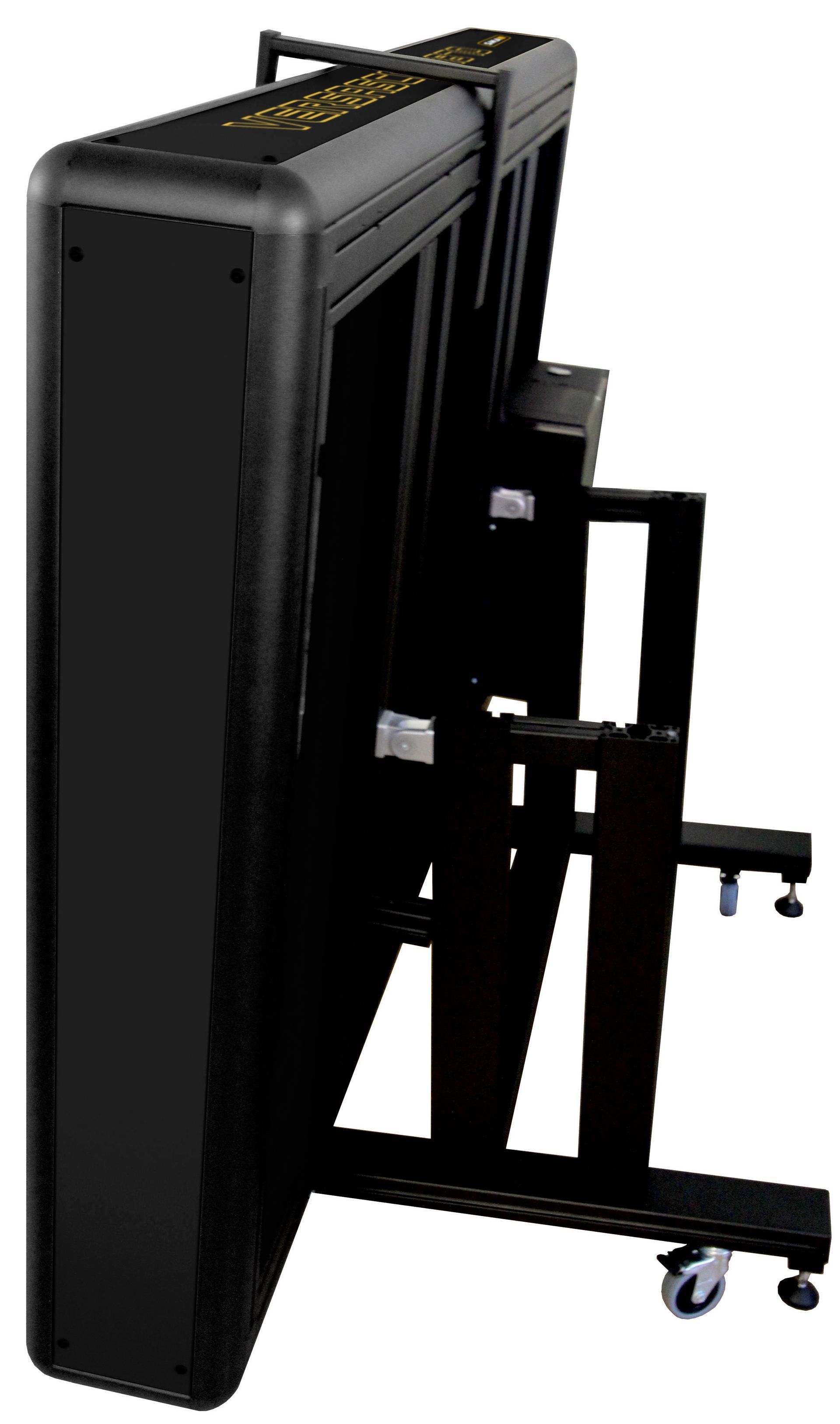

The VERSASCAN series pairs large-format scanning with unmatched portability. A fold-up, roll-away mount allows one person to easily move the unit through doorways or between sites, while optional motorized height adjustment provides ergonomic comfort for any operator. Purpose-built for oversized, fragile single-sheet documents, VERSASCAN can be deployed directly to where materials are stored. Its UV- and IR-free LED illumination ensures consistent, high-quality results in any lighting, making it ideal for a wide range of workflows and locations.
Technical Features
- Scanning range 1219 x 1778 mm (48"x70")
- Optical resolution of 600dpi over the entire scanning range
- 48 bit color depth
- IP device with its individual IP address
- Roll away mount with fold up function
- Also available with motorized height adjustment
Government Trusted & Approved
All of our scanners are engineered and manufactured with the highest Government standards and certifications at the forefront. Our partners at SMA has exceeded the requirements to bring a new level of quality to flatbed scanning for your most challenging scanning needs.
FADGI Compliant
The VERSASCAN 4870 is fully FADGI compliant, meeting strict Federal Guidelines for exceptional image quality. Ideal for archival digitization, it ensures accurate color, fine detail, and reliable results, preserving original materials for professional use.
ISO Certified
The VERSASCAN 4870 is ISO certified, ensuring high-quality digital images for archiving. This globally recognized standard guarantees reliable results, preserving original documents with accuracy and precision for various applications.
Want A Demo Of Any Of Our Products?
See our scanners and software live! Whether a virtual demo or in our Las Vegas show room, we invite you to see first hand how our solutions can work in your real-world environment. Send us your documents and see the real results our scanners, and JetStream AI can do for you.
VERSASCAN 4870 2A0 Flatbed Scanner

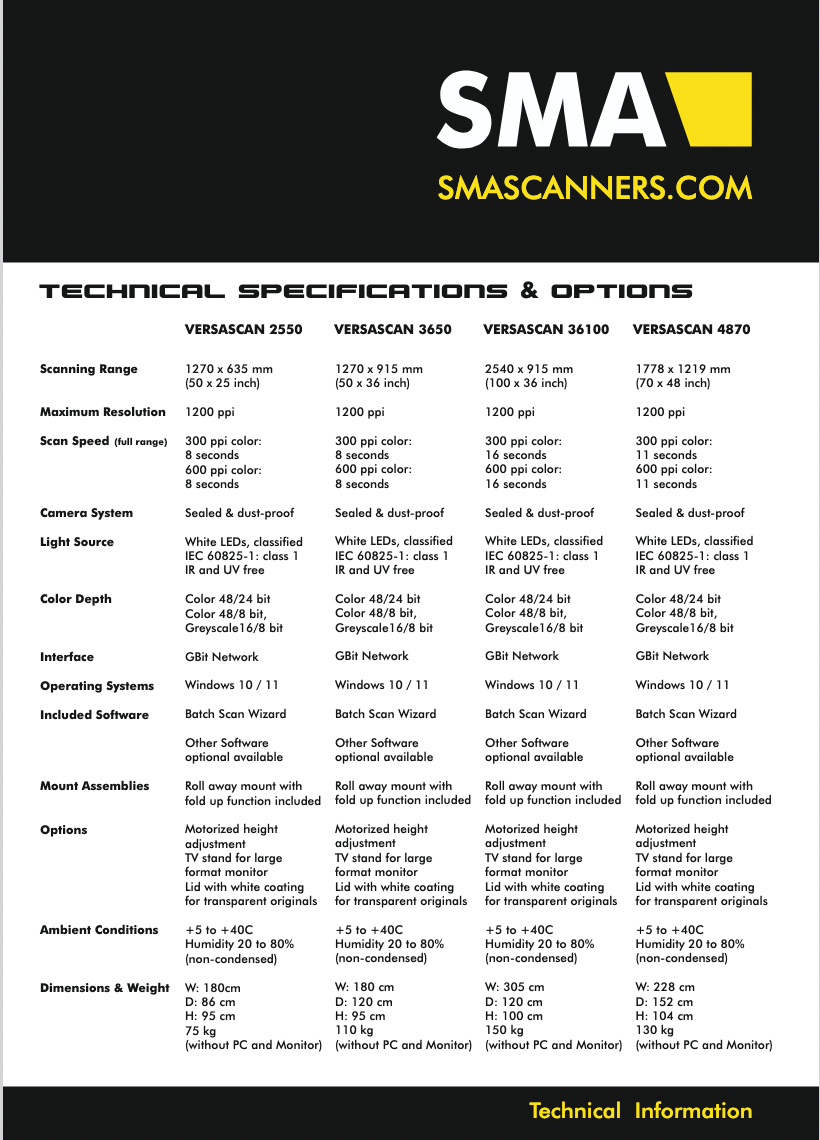

For comprehensive details on the capabilities and features of the VERSASCAN 4870 2A0 flatbed scanner, we encourage you to download the specification sheet. This document provides in-depth technical specifications, performance metrics, and additional information to help you understand the full range of functionalities and benefits our scanners offer. Whether you need precise data on resolution, speed, or advanced features, the specification sheet is your go-to resource for all the information you need.
