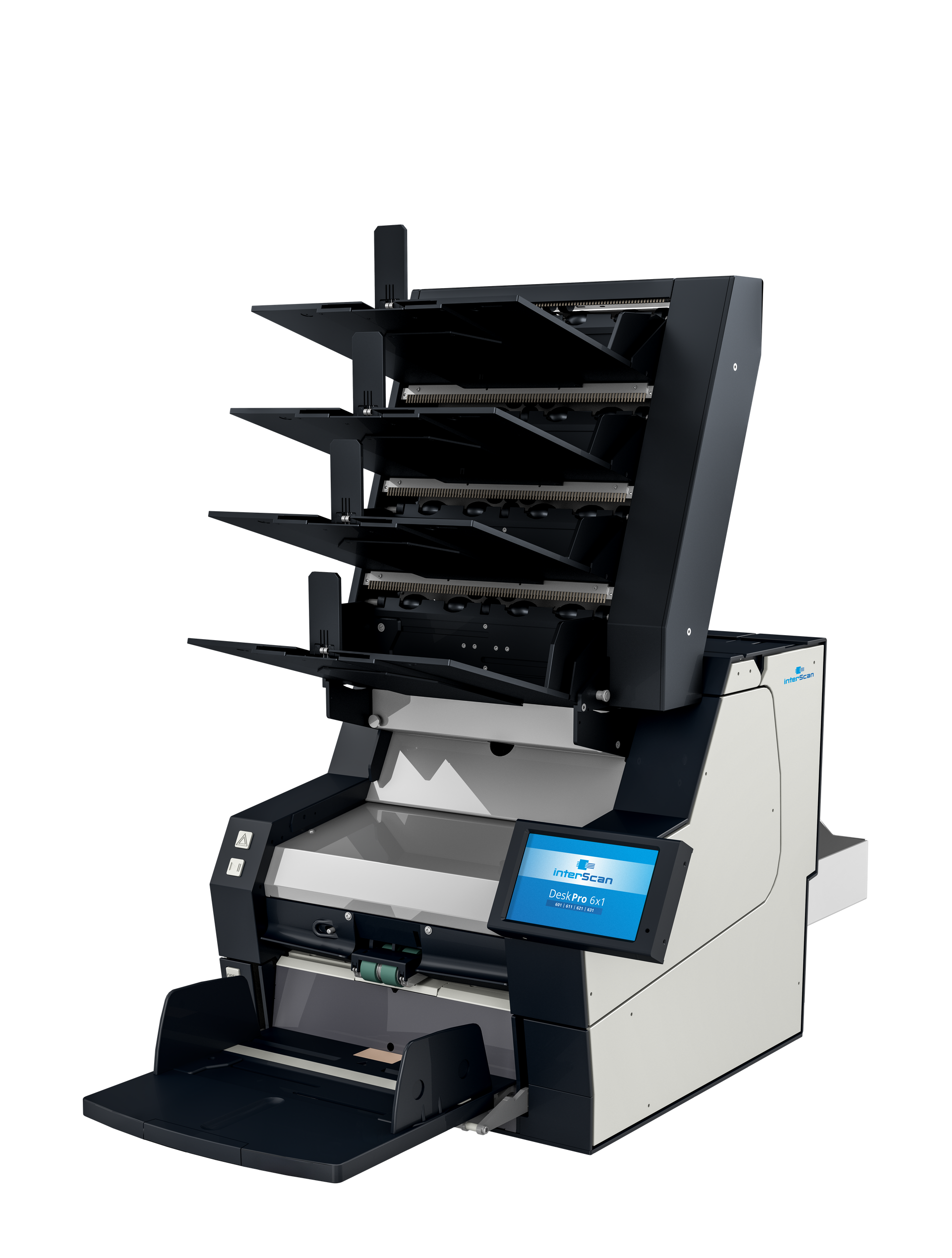

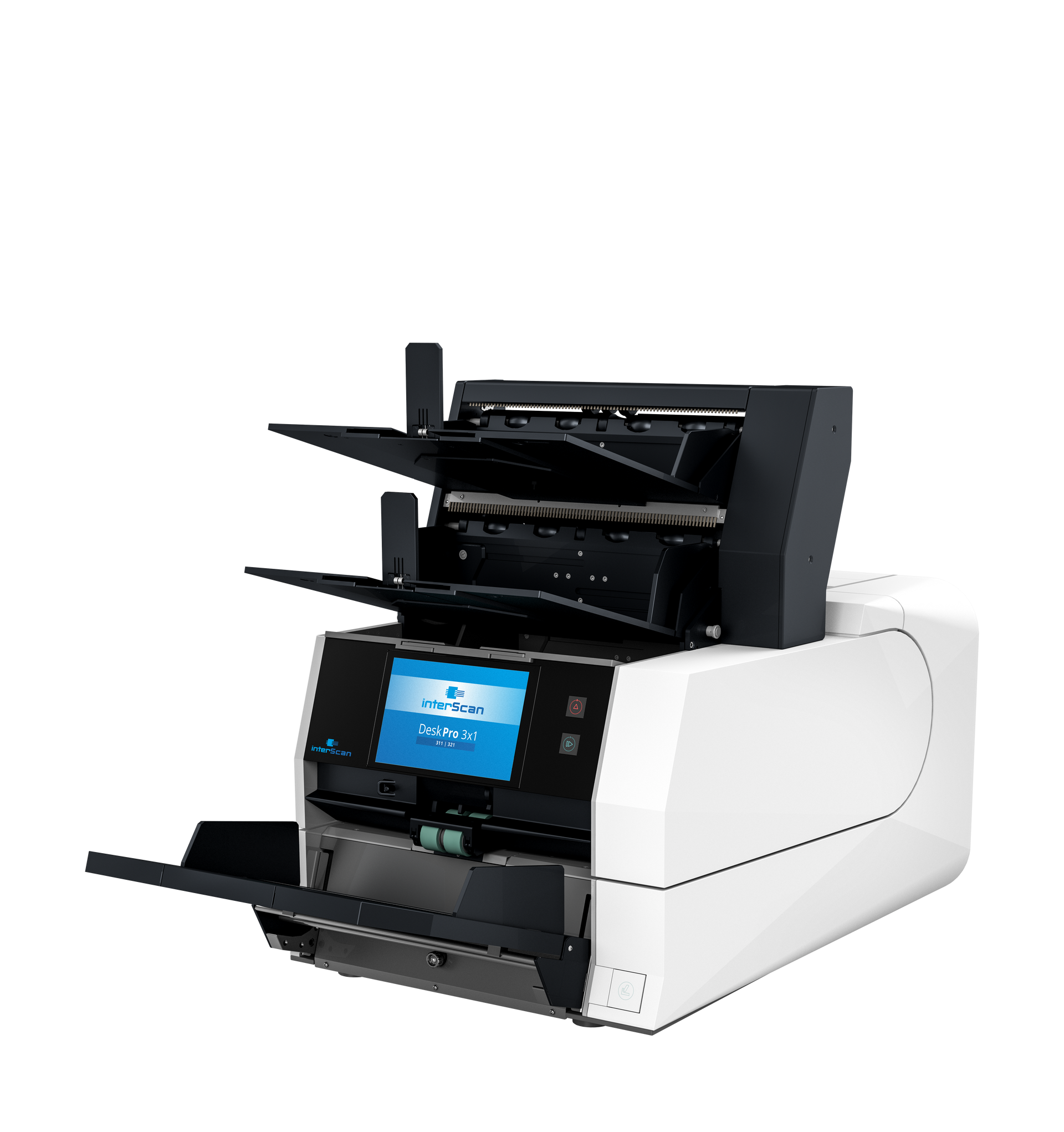

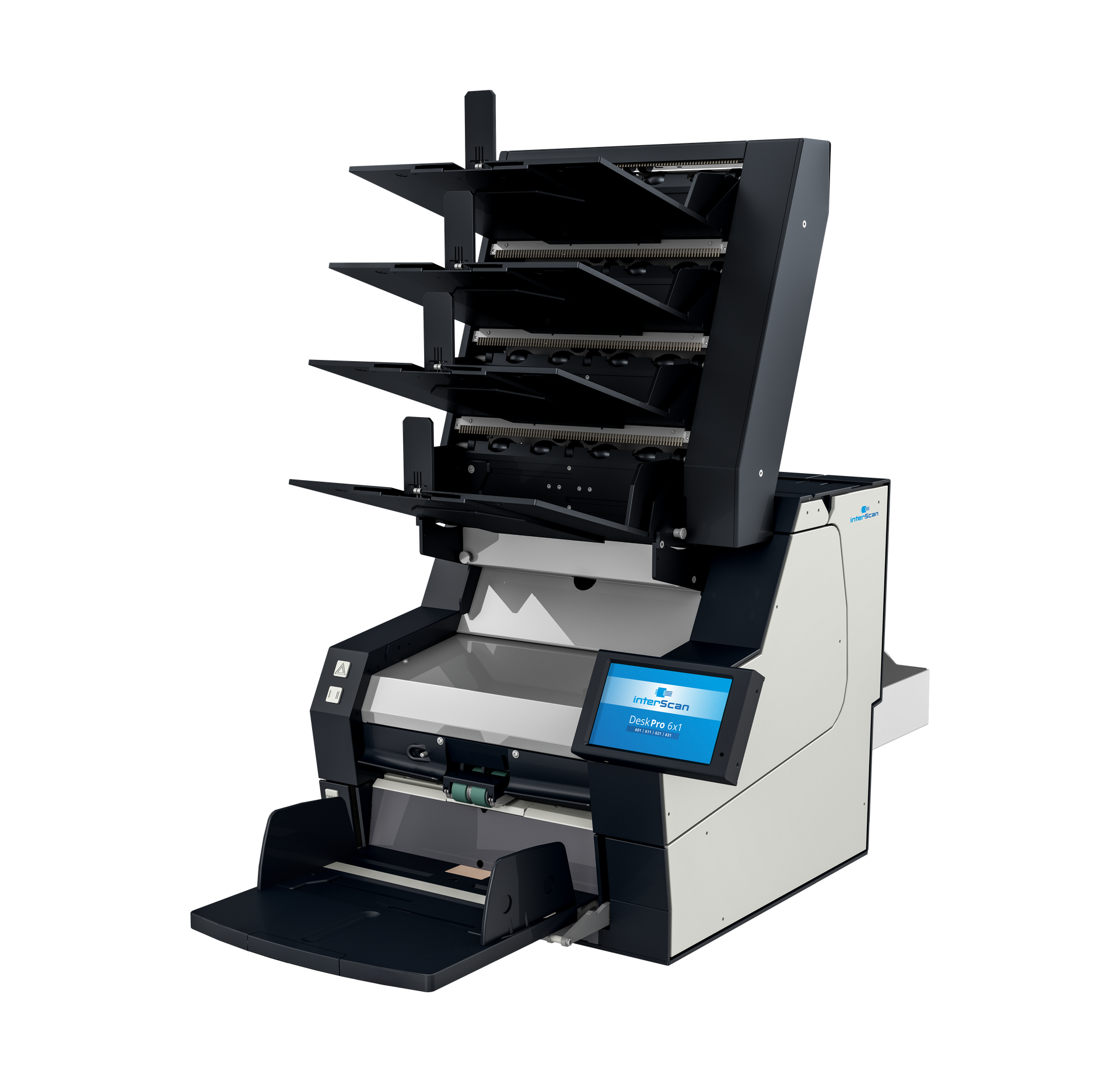

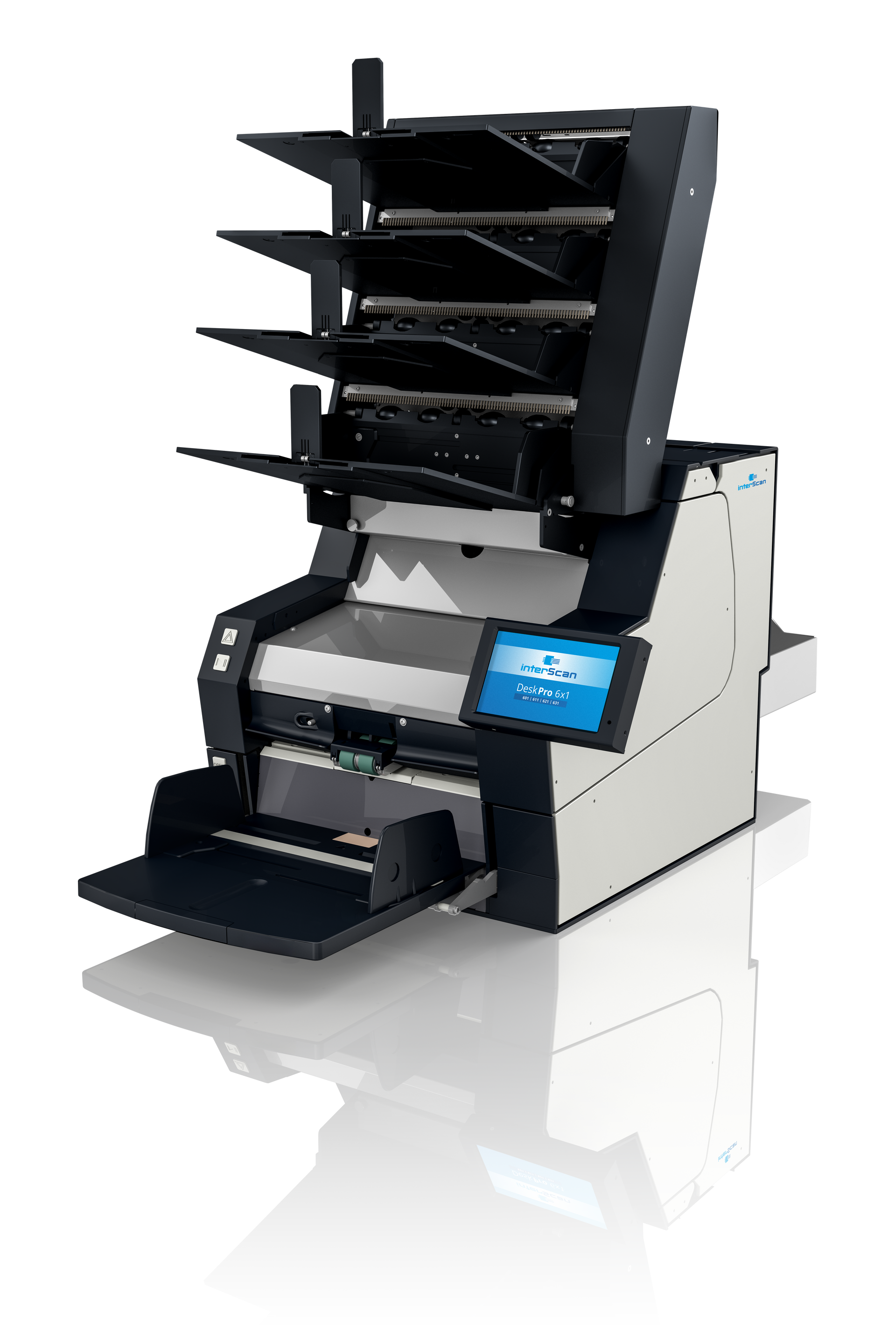

DeskPro Sorter
Document Sorting At Full Speed
With up to 5 sorting trays, the DeskPro Sorter enhances the functionality of the DeskPro series 3x1 and 6x1 desktop document scanners. Designed for high-efficiency scanning and sorting, this unit operates at full scanning speed and can sort by patch code, barcode, length, database, and more. Get the sorting capabilities of a large production scanner and the size of a desktop scanner.
Highest Quality
Manufactured with the highest-quality engineering, the DeskPro Sorter provides superior sorting accuracy and reliability.
Cost Savings
The DeskPro Sorter, when combined with your DeskPro scanner, offers high-capacity sorting at a lower cost than the larger industrial scanners.
Maximum Efficiency
Between two and four extra output trays, the DeskPro Sorter offers the highest sorting capacity on the market with minimal space requirements.
Minimum Space, Maximum Efficiency
Comprehensive Onboard Image Processing
The DeskPro Sorter, as a hardware add-on, expands all DeskPro 3x1 and 6x1 series scanners to three or five output trays, making them the desktop devices with the highest sorting capacity on the market. This add-on ensures minimal space requirements and maximum cost efficiency.
Efficient & Versatile Sorting
DeskPro's Sorter is available as a double or quadruple sorter, compatible with all DeskPro 3x1 and 6x1 scanners. It features a fully accessible paper path and can be easily installed on-site. Whether you're dealing with separation sheets, cover sheets, or specific document types, the DeskPro Sorter can sort documents into up to five output trays at full scanning speed, based on various criteria such as patch code, barcode, document length, and more.
Sorter Capabilities
Sorting Events
Patch code, 1D & 2D barcodes, document length, counter/indexing, document integrity detection, database (CSV file), and content-based sorting.
Stack Height
Bottom tray: 100 mm (approx. 700 sheets); Upper tray: 75 mm (approx. 500 sheets).
Throughput
DeskPro 6x1: max. 210 pages/minute; DeskPro 3x1: max. 120 pages/minute.
Paper Specs
Paper weight: 30 g/m² to 250 g/m².
Paper format:
Up to DIN A3 (317.5 mm width, 420 mm length).
Technical Specifications
DeskPro 3x1
- Height: 590 mm (2 trays), 810 mm (4 trays)
- Weight (including scanner): 62.0 kg (2 trays), 73.0 kg (4 trays)
DeskPro 6x1
- Height: 715 mm (2 trays), 935 mm (4 trays)
- Weight (including scanner): 77.0 kg (2 trays), 87.8 kg (4 trays)
